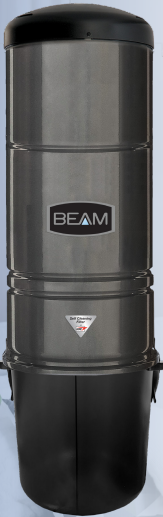

Beam 360 (ABEAM360A)

Beam 360 ABEAM360A





Table of content



Click to see the technical sheet

Click to see the exploded view

Click to see the motor and electrical components

Click to see the bags & filters

Click to see the replacement parts

Click to see the warranty

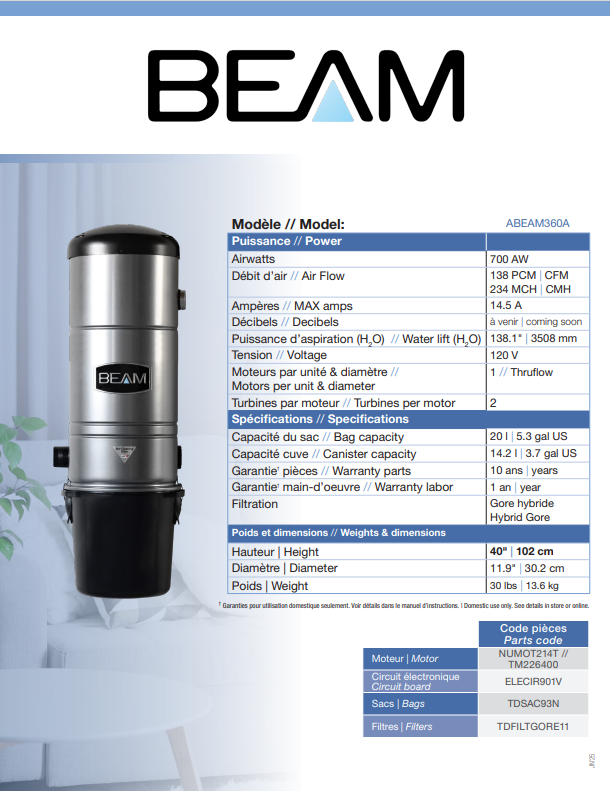

Technical sheet

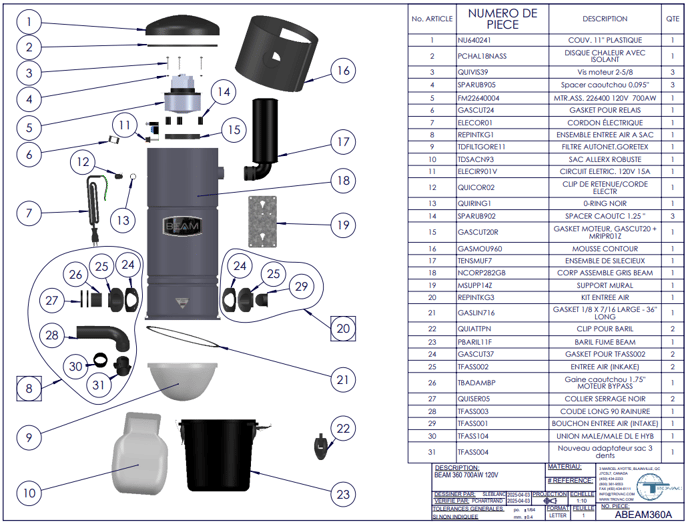

Exploded view

Motor & electrical components

Ametek thru-flow motor 122264 120V (FM22640001)

Ametek thru-flow motor technical sheet (FM22640001)

Motor gasket (GASCUT20R)

Circuit board 15A 120V (ELECIR901V)

Circuit board connection diagram (ELECIR903V)

Power cord 120V (ELECOR01)



Click here to return to the table of content

Bags & filters

Heavy duty electrostatic bags (TDSAC93N)

Self-cleaning Goretex filters (TDFILTGORE11)



Click here to return to the table of content

Replacement parts

Air inlet kit with rivets (REPINTKG1)

Galvanized Beam wall bracket (MSUPP14Z)

``Picture will follow soon``

Beam smoked canister (PBARIL11F)

Canister gasket (GASLIN716)

Muffler complet kit (TENSMUF7)



Click here to return to the table of content

Warranty

Parts warranty: 10 years

Labor warranty: 1 year
