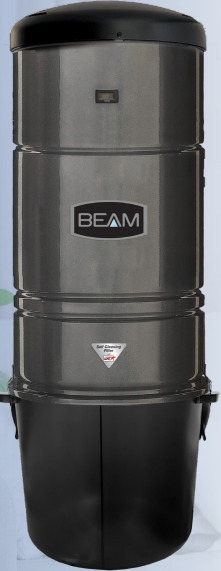

Beam 3600 (ABEAM3600A)

Beam 3600 ABEAM3600A

Table of content



Click to see the technical sheet

Click to see the exploded view

Click to see the motor and electrical components

Click to see the bags & filters

Click to see the replacement parts

Click to see the warranty

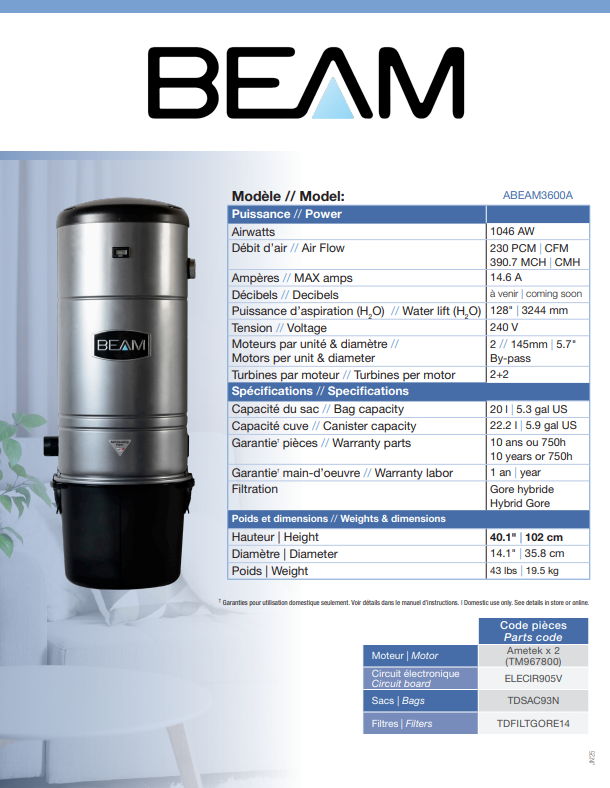

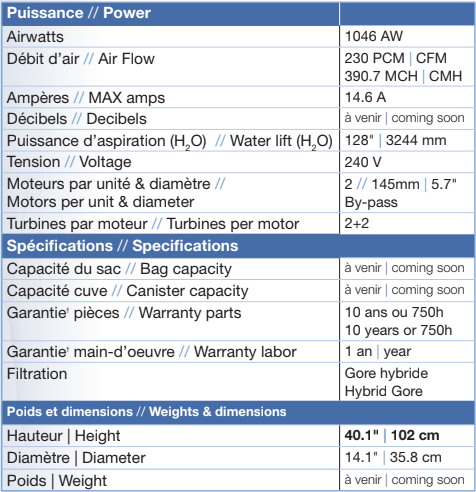

Technical sheet

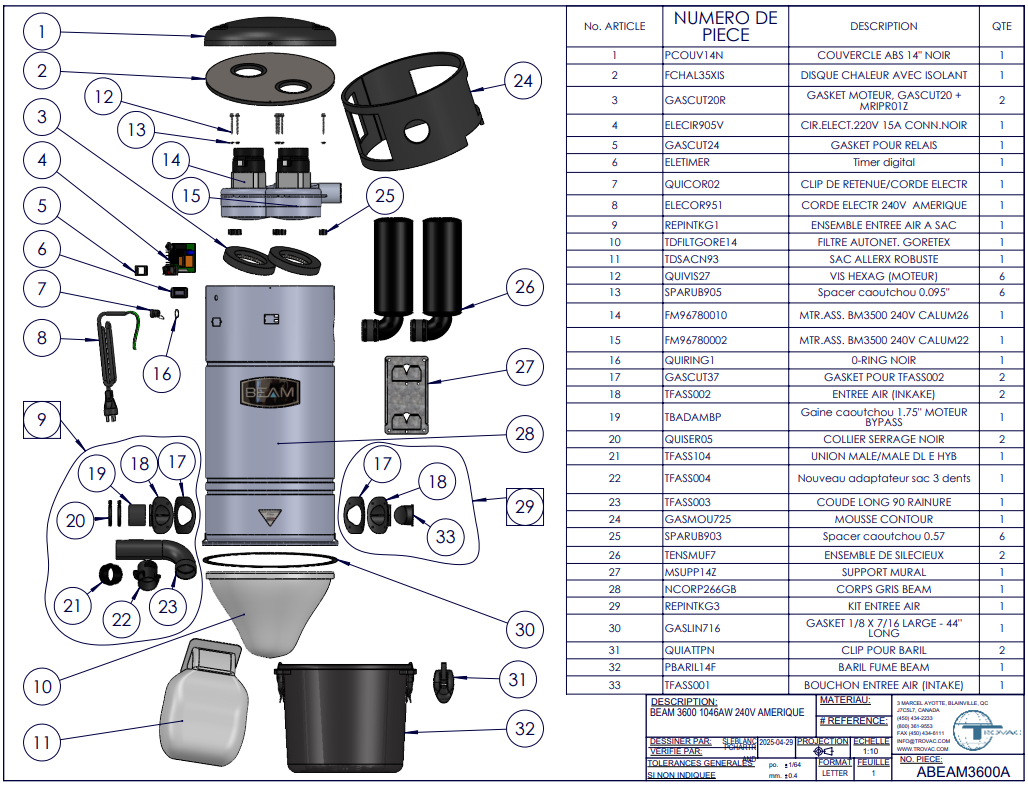

Exploded view

Motor & electrical components

Ametek by-pass motor 119678-07 240V with 20,96 cm horn (FM96780010)

Ametek by-pass motor 119678-07 240v with 5,72 cm horn (FM96780002)

Ametek by-pass motor 119678-07 technical sheet (TM967800)

Motors gasket (GASCUT20R)

Circuit board 15A 240V (ELECIR905V)

Circuit board connection diagram (ELECIR905V)

Power cord 240v (ELECOR951)



Click here to return to the table of content

Bags & filters

Heavy duty electrostatic bags (TDSAC93N)

Self-cleaning Goretex filters (TDFILTGORE14)



Click here to return to the table of content

Replacement parts

Air inlet kit with rivets (REPINTKG1)

Galvanized Beam wall bracket (MSUPP14Z)

``Picture will follow soon``

Beam smoked canister (PBARIL14F)

Canister gasket (GASLIN716)

Muffler complet kit (TENSMUF7)



Click here to return to the table of content

Warranty

Parts warranty: 10 years or 750 hours

Labor warranty: 1 year
