Beam 398 (2026 winter promo)



Table of content



Click to see the technical sheet

Click to see the exploded view

Click to see the motor and electrical components

Click to see the bags & filters

Click to see the replacement parts

Click to see the warranty

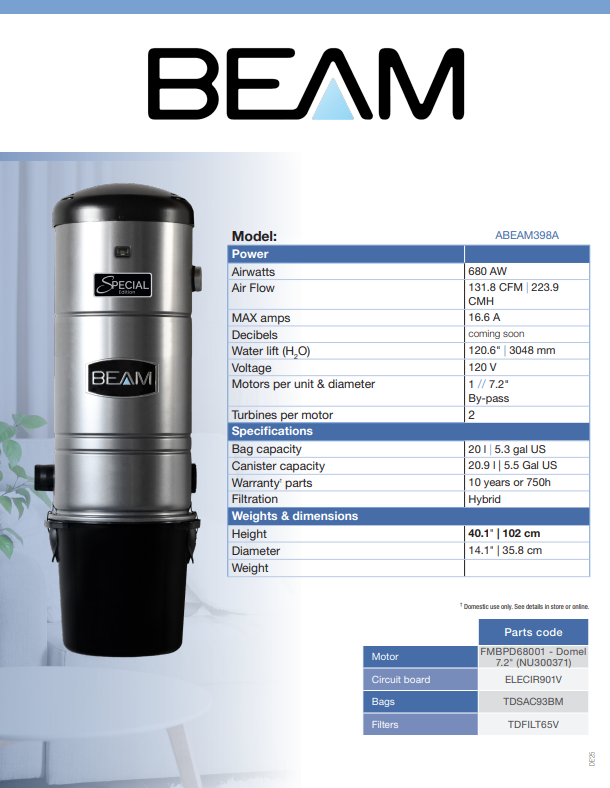

Technical sheet

Exploded view

``Coming soon``



Motor & electrical components

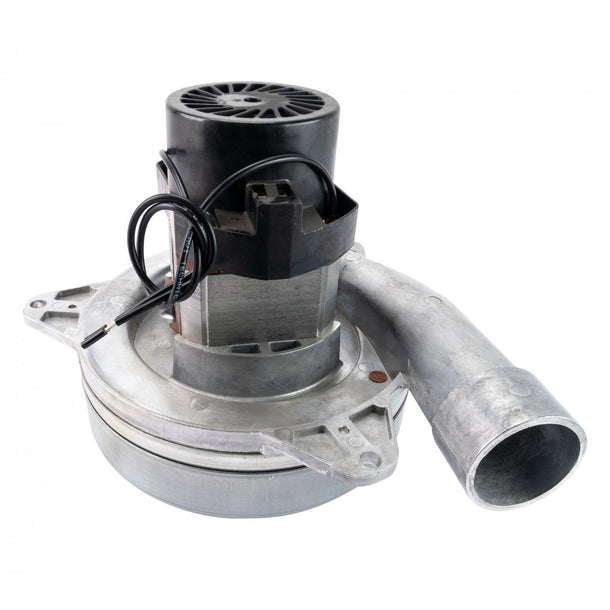

Domel by-pass motor 499.3.701-3 120V (FMBPD68001)

Domel by-pass motor 499.3.701-3 technical sheet (FMBPD68001)

Motor gasket (GASCUT20R)

Circuit board 15A 120V (ELECIR901V)

Circuit board connection diagram (ELECIR901V)

Timer modul 120/240v (ELETIMER)

Power cord 120v (ELECOR01)



Click here to return to the table of content

Bags & filters

Heavy duty Beam electrostatic bags (TDSAC93BM)

Self-cleaning HEPA filters (TDFILT65V)



Click here to return to the table of content

Replacement parts

Air inlet kit with rivets (REPINTKG1)

Galvanized Beam wall bracket (MSUPP14Z)

``Picture will follow soon``

Beam smoked canister (PBARI14N02)

Canister gasket (GASLIN716)

Muffler complet kit (TENSMUF7)



Click here to return to the table of content

Warranty

Parts warranty: 10 years

Labor warranty: 1 year
