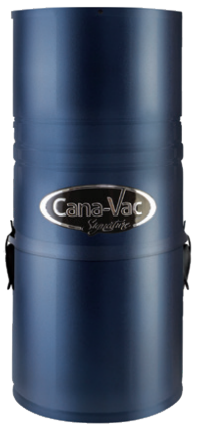

CV490 (ACAN490A)

CV490 ACAN490A

Table of content

Click to see Technical File

Click to see exploded view

Click to see Motor & Electric component

Click to see Bags & Filters

Click for Warranty

Technical File

Exploding View

Motor & Electric component

Ametek 122288 thru-flow 120v assembled motor (FM22880001)

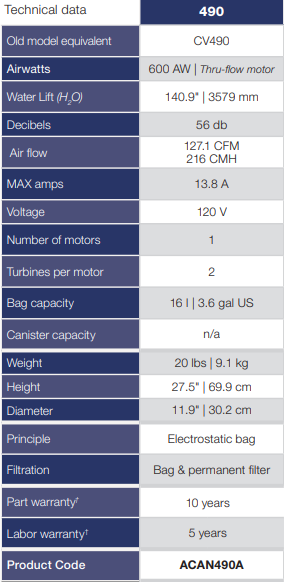

Technical sheet of the Ametek 122288 motor (FM22880001)

Carbon brush (TMCARB15)

Motor gasket (GASCUT20R)

Circuit board 15amp 120v (ELECIR901V)

Circuit board connection diagram (ELECIR901V)

Power cord 120v (ELECOR01)

Bags & Filters

Compact heavy duty electrostatic bags (TDSAC91N)

Tambourine HEPA filter (TDFITE74V)

Warranty

Part warranty : 10 years

Labor warranty : 5 years
