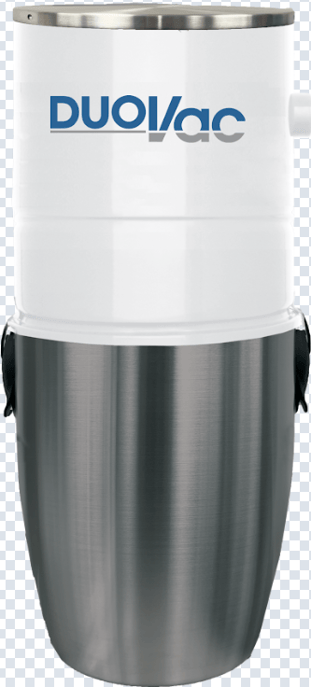

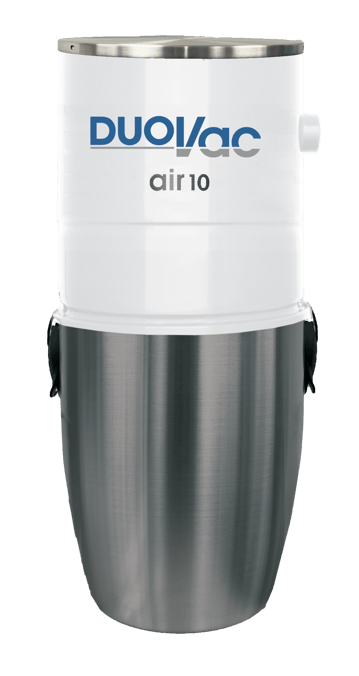

Duovac Air10 (ADUOAIR10A)

duovac air10 aduoair10a



Table of content



Click to see the technical sheet

Click to see the exploded view

Click to see the motor and electrical components

Click to see the bags & filters

Click to see the replacement parts

Click to see the warranty





Technical sheet

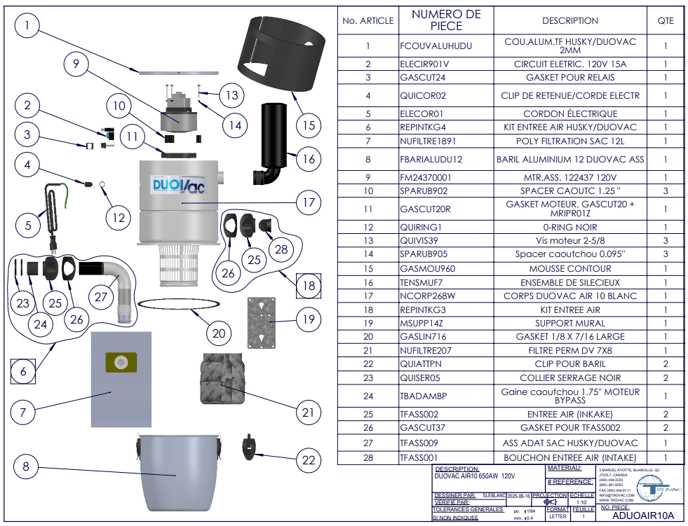

Exploded view

Motor & electrical components

Ametek thru-flow motor 122437 120V (FM24370001)

Ametek thru-flow motor 122264 120V technical sheet (FM2437001)

Motor gasket (GASCUT20R)

Circuit board 15A 120V (ELECIR901V)

Circuit board connection diagram (ELECIR901V)

Power cord 120v (ELECOR01)



Click here to return to the table of content

Bags & filters

Poly filtration bags (NUFILTRE189)

Duovac permanent filter 7x8 (NUFILTRE207)



Click here to return to the table of content

Replacement parts

Air inlet kit with rivets (REPINTKG4)

``Picture will follow soon``

Galvanized wall bracket (MSUPP14Z)

``Picture will follow soon``

Duovac aluminium canister (FBARIALUDU12)

``Picture will follow soon``

Canister gasket (GASLIN716)

Muffler complet kit (TENSMUF7)



Click here to return to the table of content

Warranty

Parts warranty: 10 years

Labor warranty: 2 years
