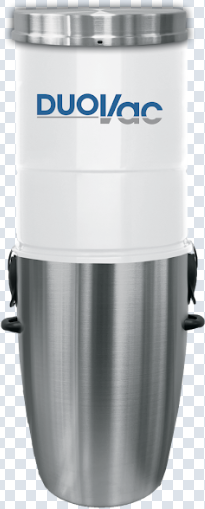

Duovac Air50 (ADUOAIR50A)

Duovac air50 ADUOAIR50A



Table of content



Click to see the technical sheet

Click to see the exploded view

Click to see the motor and electrical components

Click to see the bags & filters

Click to see the replacement parts

Click to see the warranty





Technical sheet

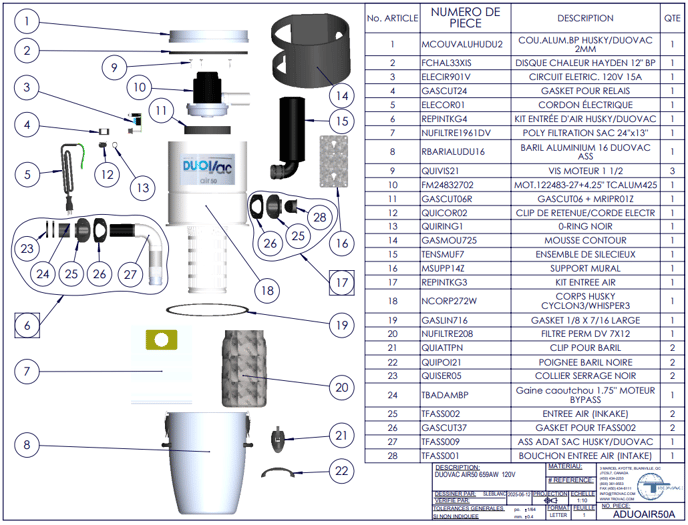

Exploded view



Motor & electrical components

Ametek by-pass motor 122483-27 120V (FM24832702)

Ametek by-pass motor technical sheet (FM24832702)

Motor gasket (GASCUT06R)

Circuit board 15A 120V (ELECIR901V)

Circuit board connection diagram (ELECIR901V)

Power cord 120v (ELECOR01)



Click here to return to the table of content



Bags & filters

Poly filtration bags (NUFILTRE196)

Duovac permanent filter 7x12 (NUFILTRE208)



Click here to return to the table of content



Replacement parts

Air inlet kit with rivets (REPINTKG4)

``Picture will follow soon``

Galvanized wall bracket (MSUPP14Z)

``Picture will follow soon``

Duovac aluminium canister (FBARIALUDU16)

``Picture will follow soon``

Canister gasket (GASLIN716)

Muffler complet kit (TENSMUF7)



Click here to return to the table of content



Warranty

Parts warranty: 10 years

Labor warranty: 2 years



Click here to return to the table of content
