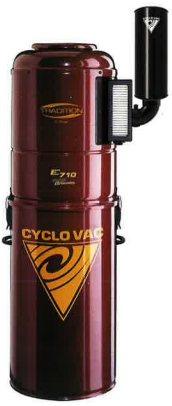

E710

UCYE710A Discontinued

Table of content

Click to see Technical File

Click to see Motor & Electric component

Click to see Bags & Filters

Click for Warranty

Technical File

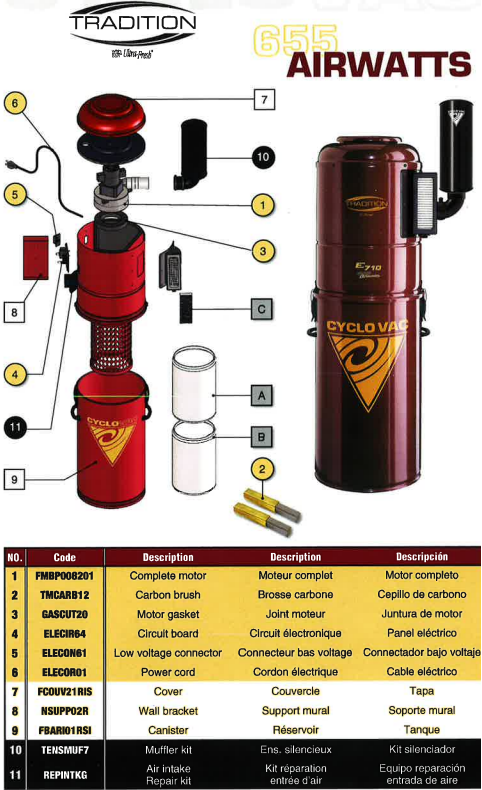

Exploding View

Motor & Electric component

Assembled Electromotor 6600-82A Bypass 120v (FMBP008202)

Technical File Electromotor 6600-82A (FMBP008202)

Carbon brush (TMCARB12)

Motor Gasket (GASCUT20R)

Circuit board 15 amp 120v (ELECIR901)

**Please note the circuit board ELECIR64 is discontinued and replaced by ELECIR901**

Wiring diagram for electronic circuit (ELECIR901)

Power cord 120v (ELECOR01)

Bags & Filters

Filter kit - Anticlogging pre-filter and cyclofilter (TDFICY22)

Anticlogging pre-filter (TDFICY12)

Carbon filters (TDFILHEC2)

Warranty

Part warranty : 10 years

Labor warranty : 5 years
