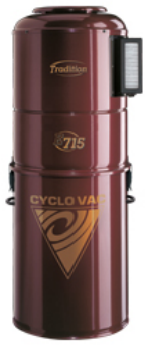

E715 (ACYE715A)

E715 ACYE715A

Table of content

Click to see Technical File

Click to see exploded view

Click to see Motor & Electric component

Click to see Bags & Filters

Click for Warranty

---

Technical File

---

Exploding View



---

Motor & Electric component

Assembled motor Electromotor 6600-82A Bypass 120v (FMBP008202)

FTechnical sheet for Electromotor 6600-82A (FMBP008202)

Carbon brush (TMCARB12)

Motor gasket (GASCUT20R)

circuit board 15amp 120v (ELECIR901V)

Circuit board connection diagram (ELECIR901V)

Power cord 120v (ELECOR01)

---

Bags & Filters

Filter kit - anticlogging and cyclofilter (TDFICY21)

Anticlogging filter kit (TDFICY11)

Carbon filters (TDFILHEC2)



---

Warranty

Part warranty : 10 years

Labor warranty : 5 years
