GS215 (ACYGS215A)

GS215 ACYGS215A

Table of content

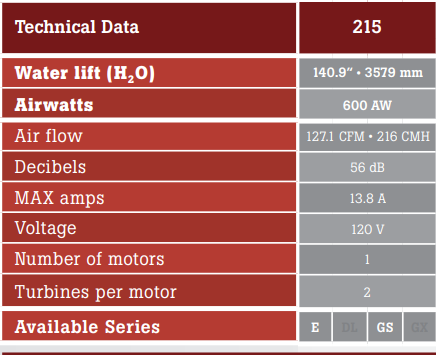

Click to see Technical File

Click to see exploding view

Click to see Motor & Electric component

Click to see Bags & Filters

Click for Warranty

Technical File

Motor & Electric component

Ametek 122288 thru-flow 120v assembled motor (FM22880001)

Technical sheet of the Ametek 122288 motor (FM22880001)

Carbon brush (TMCARB15)

Motor gasket (GASCUT20R)

Circuit board 15amp 120v (ELECIR901V)

**Please verify with serial number, early production used ELECIR901**

Circuit board connection diagram (ELECIR901V)

Power cord 120v (ELECOR01)

Bags & Filters

Electrostatic filter bags (TDSAC93C)

HEPA tambourine filter (TDFITE74V)

Warranty

Part warranty : 10 years

Labor warranty : 5 years
