      GS515

      ACYGS515A

      Table of content

      Click to see Technical File

      Click to see Motor & Electric component

      Click to see Bags & Filters

      Click for Warranty

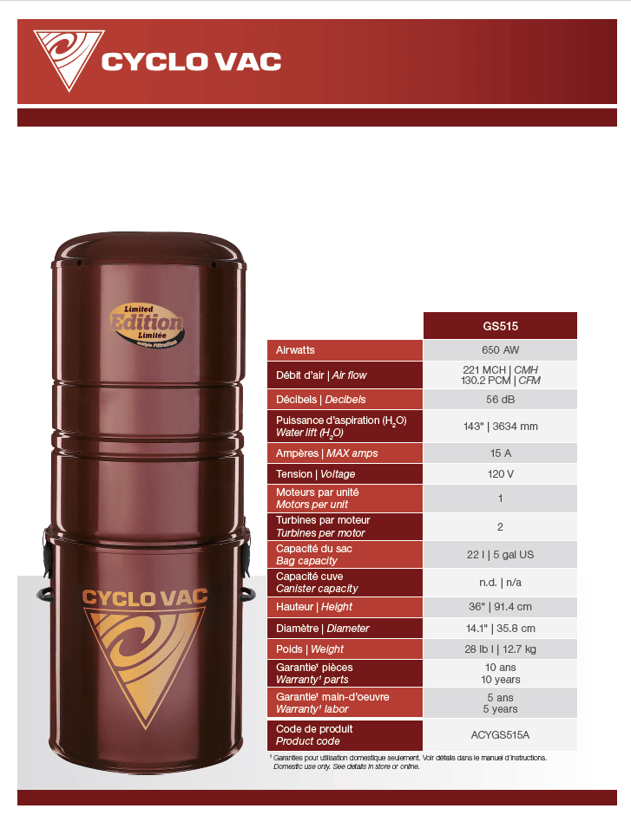

      Technical File

      Motor & Electric component

      Ametek 122437 thru-flow 120v assembled motor (FM24370001)

      Moteur assemblé AMETEK 122437-00 thru-flow - Lamb - 120V - 2 turbines - 5,7 po - 650AW - Joint d'étanchéité sur attache moteur en acier - Fil moteur avec connecteur

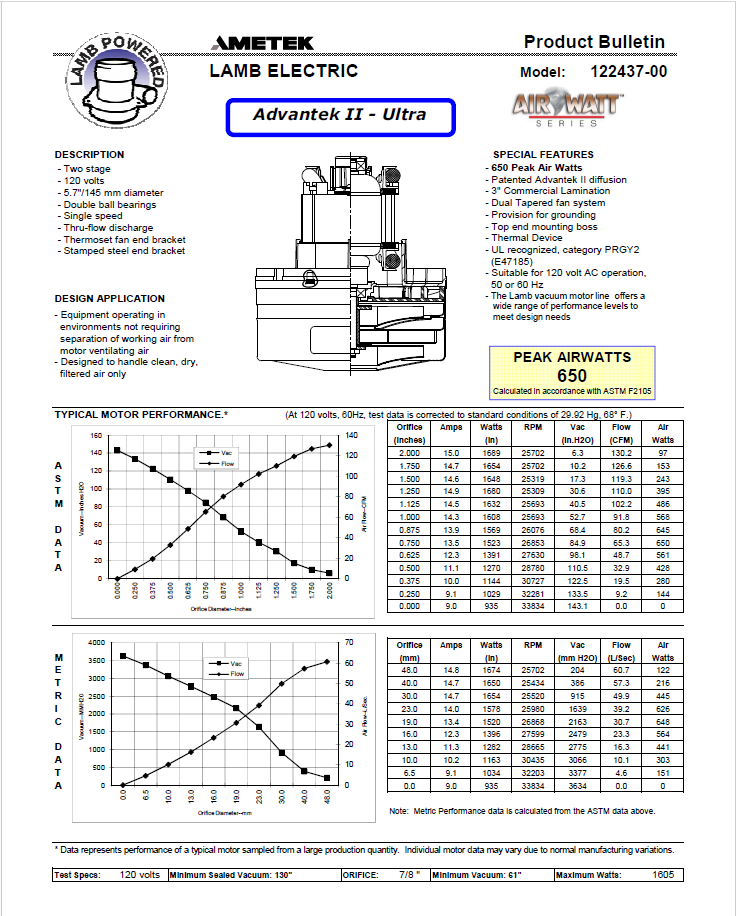

      Technical sheet of the Ametek 122264 motor (FM24370001)

      Motor gasket (GASCUT20R)

      gascut20r

      Relay transformator 120V (ELEREL10)

      Relay transformator 120V with bracket push-pin

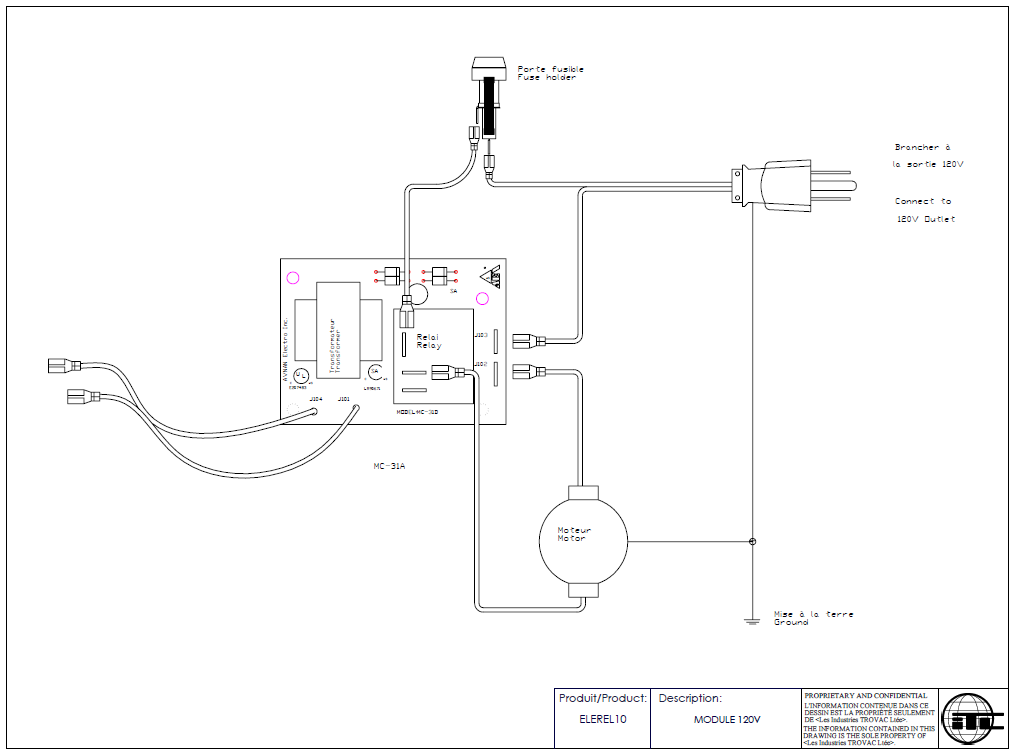

      Circuit board connection diagram (ELEREL10)



      Electric cord (ELECOR01)

      Power cord 120V

      Bags & Filters

      Compact heavy duty electrostatic filter bags (TDSAC93C)

      Heavy duty electrostatic filter bag - 3 notches - Set of 3 - 5.3 gal. (20 l)

      Tambourine filter Hepa (TDFITE75V)

      Tambourine filter - HEPA type

      Warranty

      Parts warranty : 10 years

      Labor warranty : 5 years
