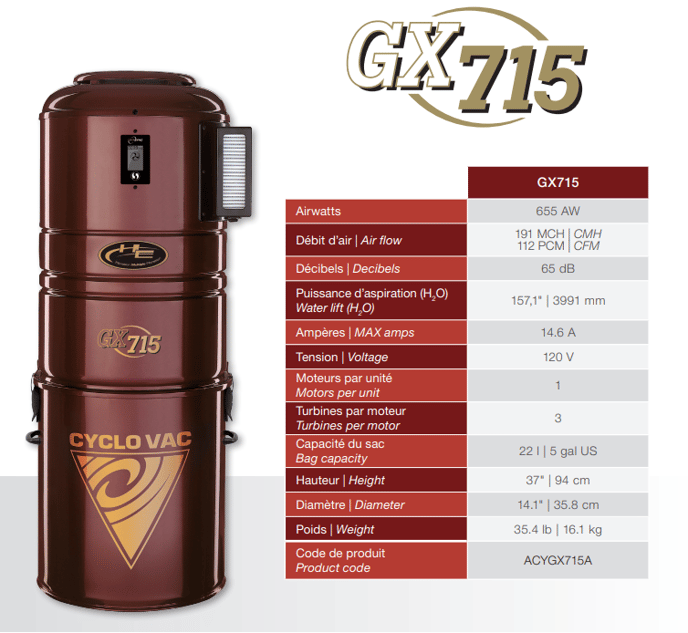

GX715 (ACYGX715A)

GX715 ACYGX715A DATA SYNC

Table of content

Click to see Technical File

Click to see exploded view

Click to see Motor & Electric component

Click to see Bags & Filters

Click for Warranty

---

Technical File

---

Exploding View



---

Motor & Electric component

Assembled motor Electromotor 6600-82A Bypass 120v (FMBP008202)

FTechnical sheet for Electromotor 6600-82A (FMBP008202)

Carbon brush (TMCARB12)

Motor gasket (GASCUT20R)



Data-sync circuit board (ELEREL60)

Circuit breaker 15 amp (ELERES15)

Wiring diagram for Data-sync circuit board (ELEREL60)

Cordon électrique 120v (ELECOR01)



---

Bags & Filters

Heavy duty electrostatic bags (TDSAC93C)

Heavy duty electrostatic bags with carbon filter(TDSAC83C) (TDSAC84C)

Carbon filters (TDFILHEC2)

HEPA Tambourine filter (TDFITE75V)

---

Warranty

Part warranty : 15 years or 750hrs

Labor warranty : 5 years
