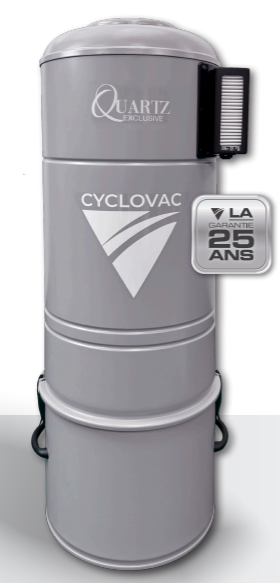

      H725 Quartz Fall 2024 (September 3 to January 15)

      ACYQUARTZGA

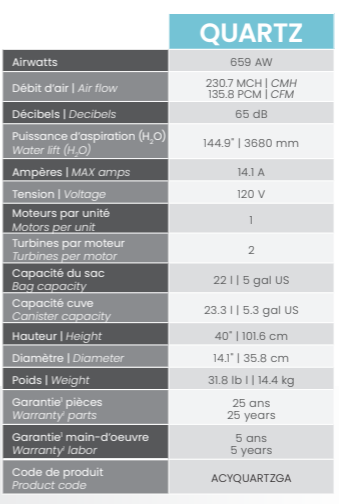

      Technical File

      Motor and electric components



      Assembled motor Ametek 1222483 Bypass 120v (FM24832702)

      fm24832702
      Technical sheet of the Ametek 122483 motor (FM24832702)


      fichetechnique122483

      Carbon brush (TMCARB27)

      tmcarb27

      Motor gasket (GASCUT06)

      gascut06

      circuit board 15amp 120v (ELECIR901V)

      elecir901v_87

      Circuit board connection diagram (ELECIR901V)

      Capture d’écran 2023-10-23 133223



      Bags and filters



      Heavy duty electrostatic bags (TDSAC93C)

      tdsac93c_42-1

      Heavy duty electrostatic bags with carbon filter(TDSAC83C)

      tdsac83c_38

      Carbon filters (TDFILHEC2)

      tdfilhec2

      Self-cleaning filter - HEPA type (TDFILT65V)

      tdfilt65v_6

      Warranty

      Parts warranty : 25 years

      Labor warranty : 5 years
