Active Line Up Unit
      Back to home
      1. Help Center
      2. Cyclovac - North America
      3. Active Line Up Unit

      HD800C (ACYHD800CA)

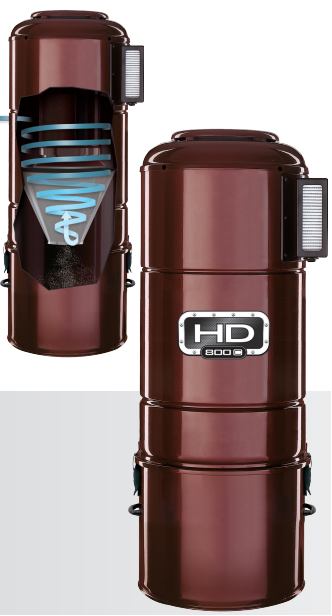

      HD800C ACYHD800CA no bags no filters

      Table of content

      Click to see Technical File

      Click to see exploded view

      Click to see Motor & Electric component

      Click to see Bags & Filters

      Click for Warranty

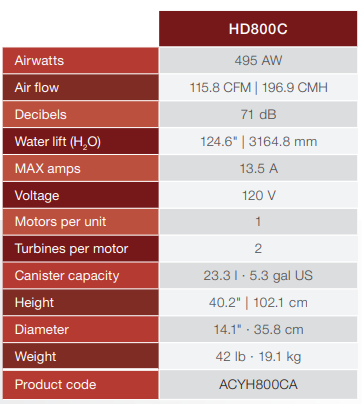

      Technical File

      Exploding View



      Motor & Electric component

      Assembled motor Ametek 117548-12 120v (FM75491201)

      fm75491201

      Technical sheet of the Ametek 117549-12 motor (FM75491201)

      Carbon brush (TMCARB08)

      tmcarb01_94

      Motor gasket (GASCUT06R)

      gascut06r

      Circuit board 15 amp 120v (ELECIR901V)

      elecir901v_87

      Circuit board connection diagram (ELECIR901V)

      Capture d’écran 2023-10-23 133223

      Power cord 120v (ELECOR01)

      elecor01_89

      Bags & Filters

      **This unit do not use bags or filters, the exhaust need to be directed outside**

      Warranty

      Parts warranty: 10 years residentiel 750hrs commercial

      Labor warranty: 1 year
