Active Line Up Unit
      Back to home
      1. Help Center
      2. Cyclovac - North America
      3. Active Line Up Unit

      HD825 (ACYHD825A)

      HD825 ACYHD825A head motor units

      Table of content

      Click to see Technical File

      Click to see Motor & Electric component

      Click for Warranty

      Technical File

      Exploding View





      Motor & Electric component

      Assembled motor Ametek 117500-12 120v (FM75001201)

      fm75001201-1

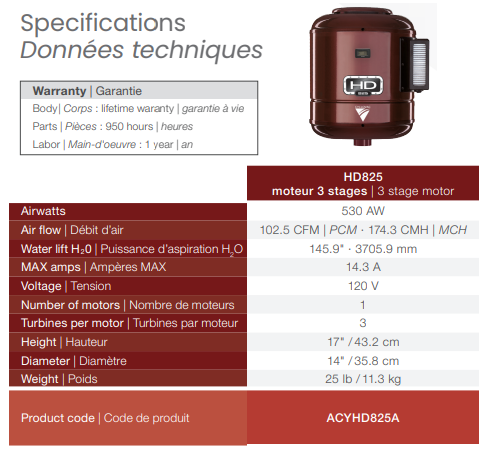

      Technical sheet of the Ametek 117500-12 motor (FM75001201)

      Carbon brush (TMCARB08)

      tmcarb01_94

      Motor gasket (GASCUT06R)

      gascut06r

      Circuit board 15 amp 120v (ELECIR901V)

      elecir901v_87

      Circuit board connection diagram (ELECIR901V)

      Capture d’écran 2023-10-23 133223

      Power cord 120v (ELECOR01)

      elecor01_89





      Warranty

      Part warranty : 950 hrs

      Labor warranty : 1 year
