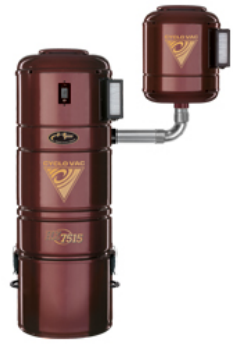

HX7515 (ACYX7515A)

HX7515 ACYX7515A DATA SYNC

Table of content

Click here to see the technical sheet

Click here to see motor and electrical component of the main unit

Click here to see motor and electrical component of the satellite unit

Click here to see bags and filters

Click here to see the warranty

---

Technical sheet

---

Exploded View

---

Motor and electrical component of the main unit

Assembled Electromotor 6600-034 Bypass 240v (FMCY034302)

Technical sheet for Electromotor 6600-034 Bypass 240v (FMCY034302)

Carbon brush (TMCARB13)

Motor gasket (GASCUT20R)



Data-sync circuit board (ELEREL60)

Circuit breaker 15 amp (ELERES15)

Wiring diagram for Data-sync circuit board (ELEREL60)



Power Card 240V (ELECOR951)

Power cord 240v toward satellite unit (ELECOR55B)

Motor and electrical component of the satellite unit

Assembled Electromotor 6600-034 Bypass 240v (FMCY034301)

Technical sheet of Electromotor 6600-034 Bypass 240v (FMCY034301)

Carbon brush (TMCARB13)

Motor gasket (GASCUT06R)

240v adapter for power cord (ELECOR50)



---

Bags and Filters

Heavy duty electrosatic bags (TDSAC93C)

Heavy duty electrosatic bags with carbon filters (TDSAC83C) (TDSAC84C)

Carbon filters (TDFILHEC2)

Self-cleaning HEPA filter (TDFILT65V)



---

Warranty

Parts warranty : 15 years or 750 hours

Labor warranty : 5 years
