Platinum



Table of content



Click to see the technical sheet

Click to see the exploded view

Click to see the motor and electrical components

Click to see the bags & filters

Click to see the replacement parts

Click to see the warranty

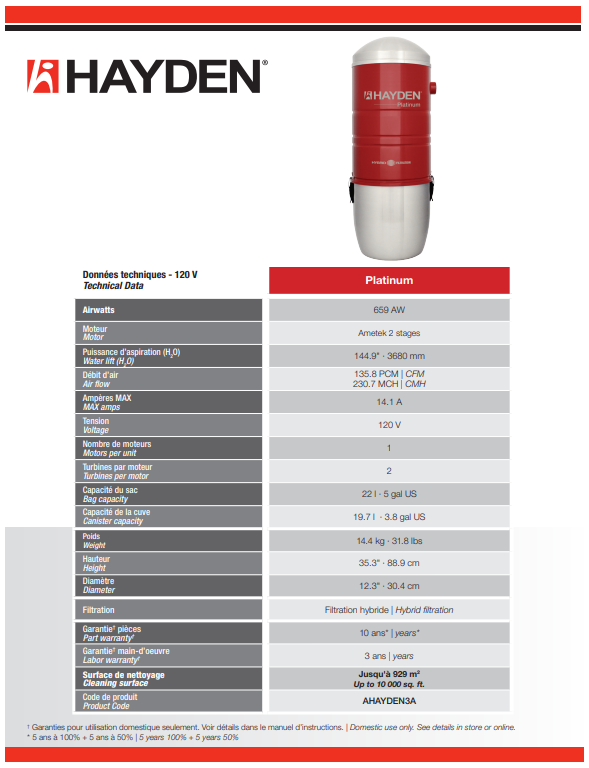

Technical sheet



Exploded view

``Coming soon``



Motor & electrical components

Ametek by-pass motor 122483-27 120V (FM24832702)

Ametek by-pass motor 122483-27 technical sheet (FM24832702)

Motor gasket (GASCUT06R)

Circuit board 15A 120V (ELECIR901V)

Circuit board connection diagram (ELECIR901V)

Power cord 120v (ELECOR01)



Click here to return to the table of content



Bags & filters

Heavy duty electrostatic bags (TDSAC93N)

Self-cleaning filters (TDFILT51v)



Click here to return to the table of content



Replacement parts

Air inlet kit with rivets (REPINTKG1)

Galvanized Beam wall bracket (MSUPP14Z)

``Picture will follow soon``

Hayden aluminium canister (MBARIALU01)

``Picture will follow soon``

Canister gasket (GASLIN716)

Muffler complet kit (TENSMUF7)



Click here to return to the table of content



Warranty

Parts warranty: First 5 years 100%, second 5 years 50%

Labor warranty: 3 years



Click here to return to the table of content
