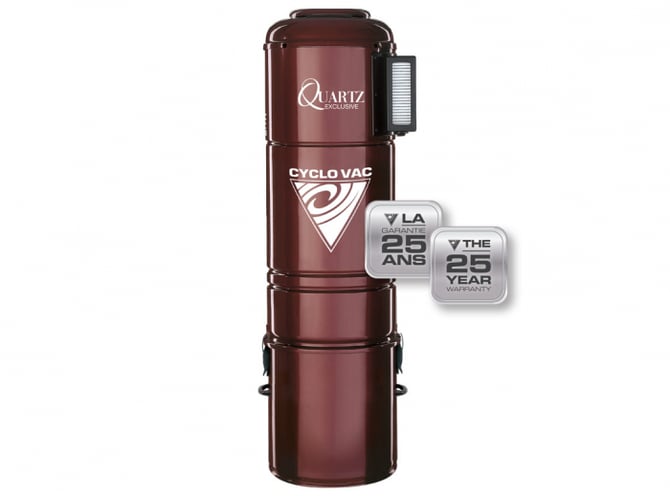

H725 Quartz fall 2023 (september 15 2023 to january 15 2024)

ACYQUARTZPA



Table of content

Click to see Technical File

Click to see Motor & Electric component

Click to see Bags & Filters

Click for Warranty

---

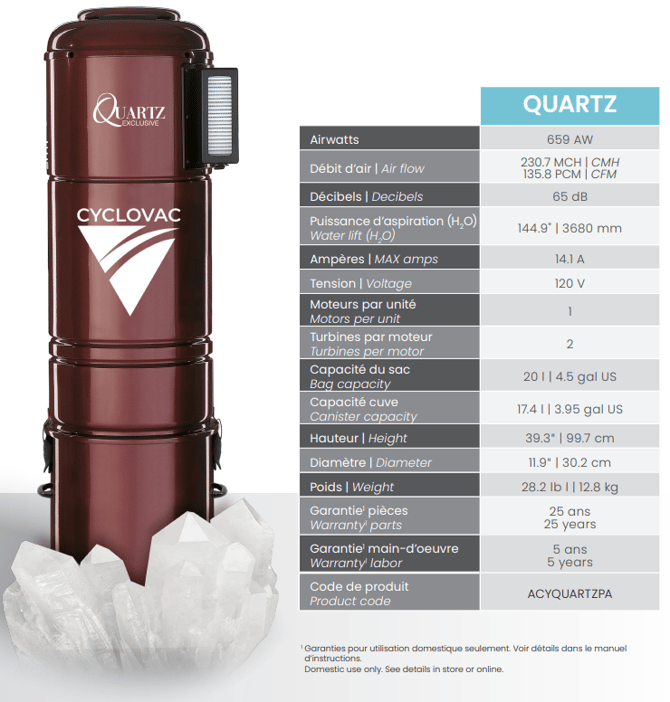

Technical file



---

Exploded view

---

Motor and electric components



Assembled motor Ametek 1222483 Bypass 120v (FM24832702)

Technical sheet of the Ametek 122483 motor (FM24832702)

Carbon brush (TMCARB27)

Motor gasket (GASCUT06)

circuit board 15amp 120v (ELECIR901V)

Circuit board connection diagram (ELECIR901V)

Power cord 120v (ELECOR01)





---

Sacs & Filtres

Heavy duty electrostatic bags (TDSAC93C)

Heavy duty electrostatic bags with carbon filter(TDSAC83C) (TDSAC84C)

Carbon filters (TDFILHEC2)

Self-cleaning filter HEPA (TDFILT64V)



---

Garantie

Garantie des pièces : 25 ans

Garantie main-d'oeuvre : 5 ans
