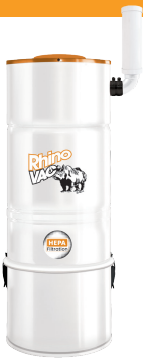

Rhinovac95 (ARVAC95A)

Rhinovac95 ARVAC95A

Table of content

Click to see Technical File

Click to see Motor & Electric component

Click to see Bags & Filters

Click for Warranty

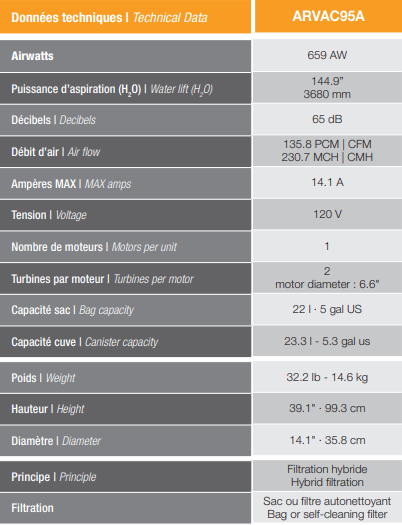

Technical File

Exploding View

Motor & Electric Component

Assembled motor Ametek 1222483 Bypass 120v (FM24832702)

Technical sheet of the Ametek 122483 motor (FM24832702)

Carbon brush (TMCARB27)

Motor gasket (GASCUT06)

circuit board 15amp 120v (ELECIR901V)

Circuit board connection diagram (ELECIR901V)

Power cord 120v (ELECOR01)

Bags & Filters

Heavy duty electrostatic bags (TDSAC93M)

Self-cleaning filter HEPA (TDFILT65V)

Warranty

Part Warranty : 10 years

Labor Warranty : 5 years
