      SUPERVAC 30

      ASUPERV30A

      Table of content

      Click to see Technical File

      Click to see Motor & Electric component

      Click to see Bags & Filters

      Click for Warranty

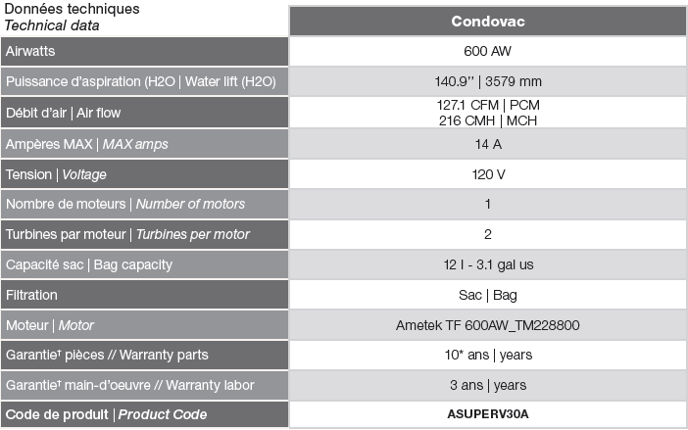

      Technical File



      Motor & Electric component

      Ametek 122288 thru-flow 120v assembled motor (FM22880001)

      fm22880001

      Technical sheet of the Ametek 122288 motor (FM22880001)

      SPEC122288

      Circuit board 15amp 120v (ELECIR901V)

      elecir901v_87

      Circuit board connection diagram (ELECIR901V)

      Capture d’écran 2023-10-23 133223

      Power cord 120v (ELECOR01)

      elecor01_89



      Bags & Filters

      Efficiency bags H14 5 folds (TDSAC3CONDOVAC)



      Warranty

      Part warranty : 10 years(5 years 100% + 5 years 50%)

      Labor warranty : 3 years
