Zircon



Table of content



Click to see the technical sheet

Click to see the exploded view

Click to see the motor and electrical components

Click to see the bags & filters

Click to see the replacement parts

Click to see the warranty





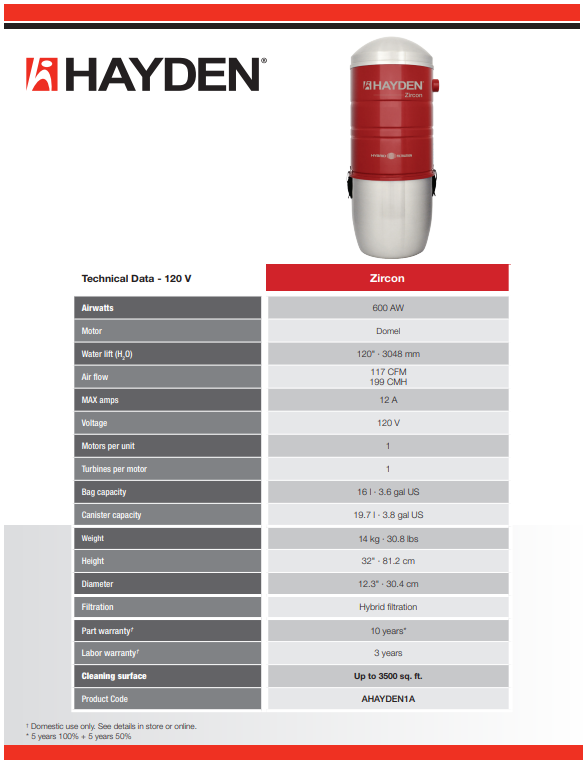

Technical sheet

Exploded view





Motor & electrical components

Domel thru-flow motor 463.3.606-2 120V (TMTFD600)

Domel thru-flow motor 463.3.606-2 120v technical sheet (TMTFD600)

Motor gasket (GASCUT41)

Circuit board 15A 120V (ELECIR901V)

Circuit board connection diagram (ELECIR901V)

Power cord 120v (ELECOR01)



Click here to return to the table of content

Bags & filters

Heavy duty electrostatic bags (TDSAC93N)

Self-cleaning filter (TDFILT51V)

Click here to return to the table of content

Replacement parts

Air inlet kit with rivets (REPINTKIT)

``Picture will follow``

Galvanized wall bracket (MSUPP02X)

``Picture will follow ``

Hayden aluminium canister (MBARILALU01)

``Picture will follow``

Canister gasket (GASLIN716)

Muffler complet kit (TENSMUF7)



Click here to return to the table of content

Warranty

Parts warranty: First 5 years 100%, second 5 years 50%

Labor warranty: 3 years



Click here to return to the table of content
