GX615 (ACYGX615A)

GX615 ACYGX615A DATA SYNC

Table of content

Click to see Technical File

Click to see Exploding View

Click to see Motor & Electric component

Click to see Bags & Filters

Click for Warranty

---



Technical File

---

Exploding View

---



Motor & Electric component

Ametek 122264 thru-flow 120v assembled motor (FM22640001)

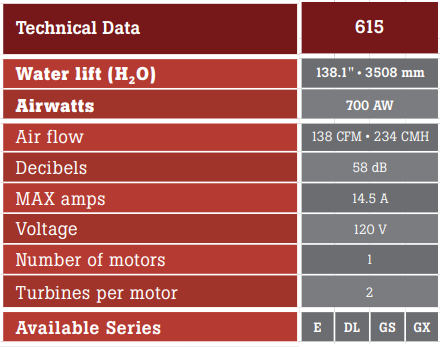

Technical sheet of the Ametek 122264 motor (FM22640001)

Carbon brush (TMCARB15)

Motor gasket (GASCUT20R)



Data-sync circuit board (ELEREL60)

Circuit breaker 15 amp (ELERES15)

Wiring diagram for Data-sync circuit board (ELEREL60)

Power cord 120v (ELECOR01)



---



Bags & Filters

Heavy duty electrostatic bags (TDSAC93C)



HEPA Tambourine filter (TDFITE75V)



---



Warranty

Part warranty : 15 years or 750 hrs

Labor warranty : 5 years
