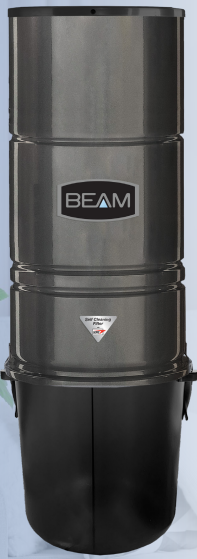

      Beam 205 (ABEAM205A)

      Beam 205 ABEAM205A



      Table of content



      Click to see the technical sheet

      Click to see the exploded view

      Click to see the motor and electrical components

      Click to see the bags & filters

      Click to see the replacement parts

      Click to see the warranty

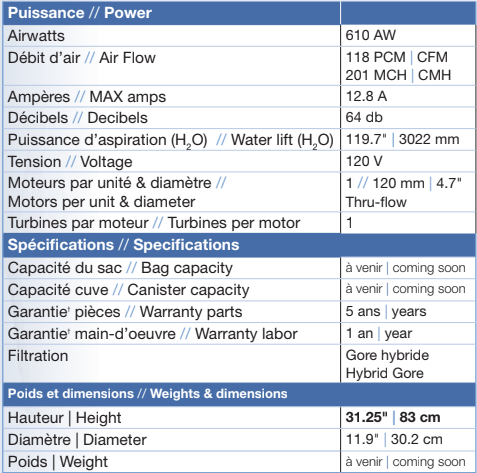

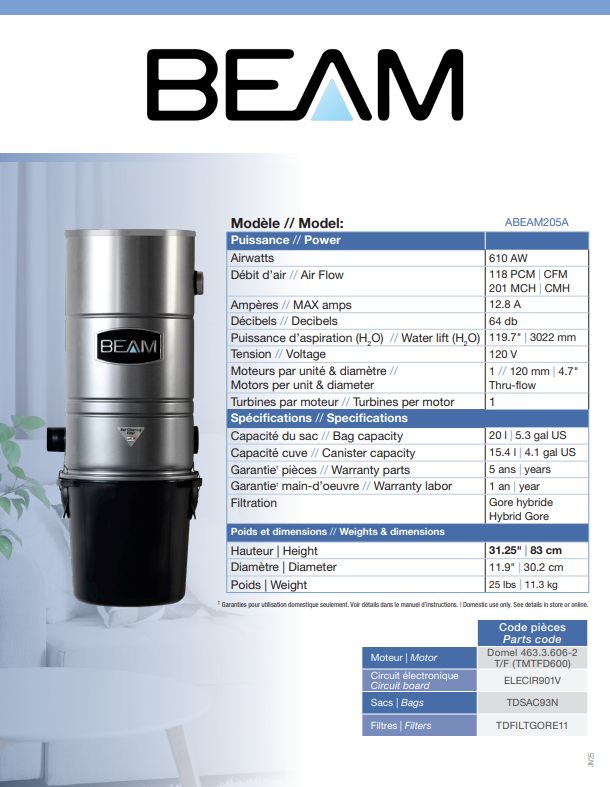

      Technical sheet

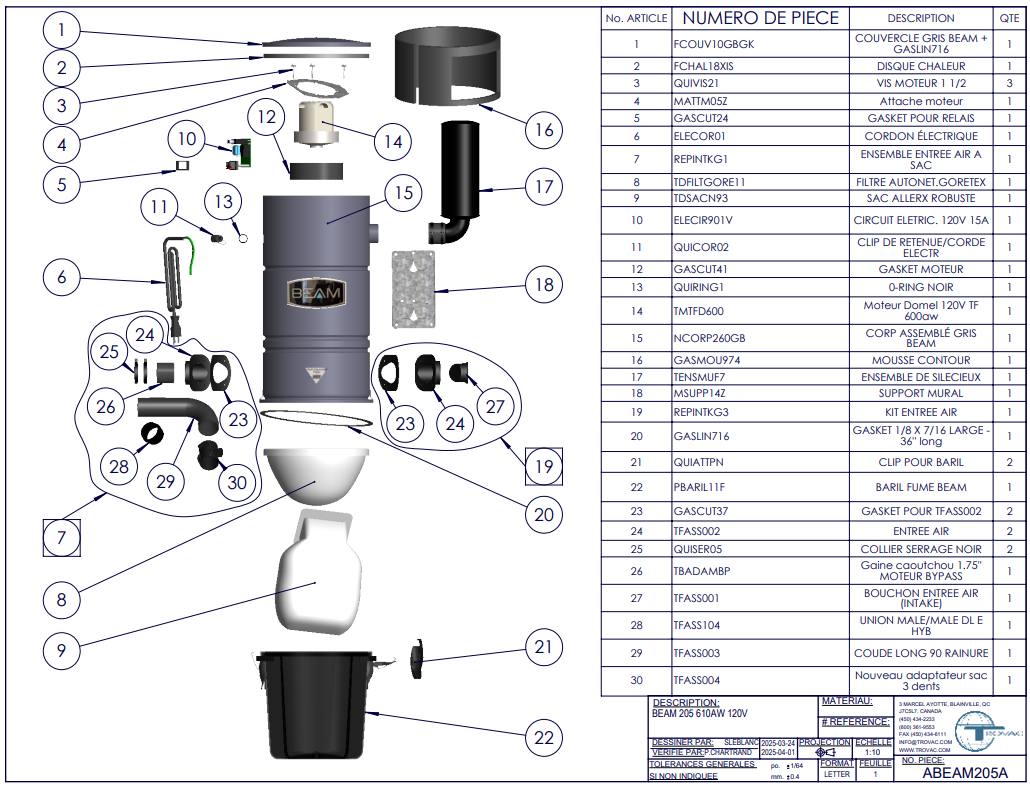

      Exploded view




      Motor & electrical components

      Domel thru-flow motor 463.3.606-2 120V (TMTFD600)

      tmtfd600_10

      Domel thru-flow motor 463.3.606-2 120v technical sheet (TMTFD600)

      TMTFD600TECHNIQUE

      Motor gasket (GASCUT41)

      image-png-Mar-27-2025-05-06-53-8588-PM

      Circuit board 15A 120V (ELECIR901V)

      elecir901v_87

      Circuit board connection diagram (ELECIR903V)

      diagram901v

      Power cord 120v (ELECOR01)

      elecor01_89



      Click here to return to the table of content

      Bags & filters

      Heavy duty electrostatic bags (TDSAC93N)

      tdsac91n_40

      Self-cleaning Goretex filters (TDFILTGORE11)

      image-png-Mar-27-2025-05-14-18-7367-PM



      Click here to return to the table of content

      Replacement parts

      Air inlet kit with rivets (REPINTKG1)

      repintkg1

      Galvanized Beam wall bracket (MSUPP14Z)

      ``Picture will follow soon``

      Beam smoked canister (PBARIL11F)

      image-png-Mar-27-2025-05-11-23-2927-PM

      Canister gasket (GASLIN716)

      gaslin716

      Muffler complet kit (TENSMUF7)

      tensmuf7_67



      Click here to return to the table of content

      Warranty

      Parts warranty: 5 years

      Labor warranty: 1 year



      Click here to return to the table of content
