      Beam 275 (ABEAM275A)

      Beam 275 ABEAM275A

      Table of content



      Click to see the technical sheet

      Click to see the exploded view

      Click to see the motor and electrical components

      Click to see the bags & filters

      Click to see the replacement parts

      Click to see the warranty

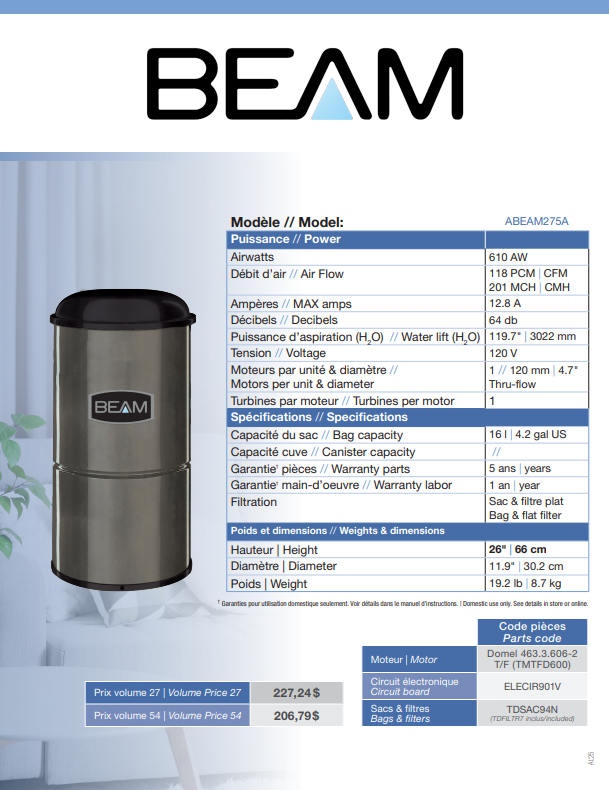

      Technical sheet

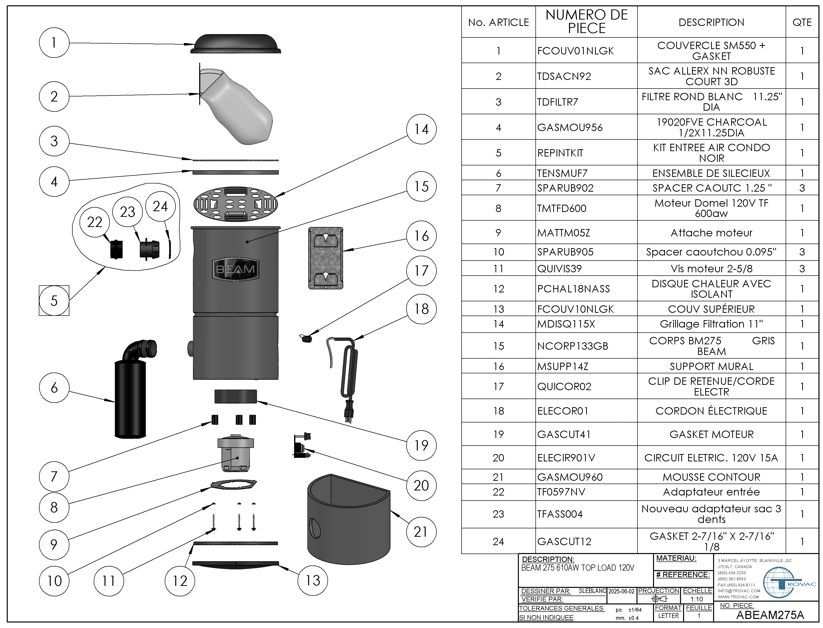

      Exploded view



      Motor & electrical components

      Domel thru-flow motor 463.3.606-2 120V (TMTFD600)

      tmtfd600_10

      Domel thru-flow motor 463.3.606-2 technical sheet (TMTFD600)

      TMTFD600TECHNIQUE

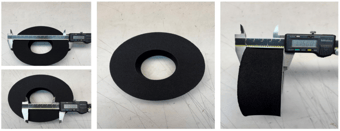

      Motor gasket (GASCUT41)

      Circuit board 15A 120V (ELECIR901V)

      elecir901v_87

      Circuit board connection diagram (ELECIR903V)

      elecir901v_87

      Power cord 120V (ELECOR01)

      elecor01_89



      Click here to return to the table of content

      Bags & filters

      Short Heavy duty electrostatic bags (TDSAC91N)

      tdsac91n_40

      Round filter (TDFILTR7)

      TDFILTR10

      Click here to return to the table of content

      Replacement parts

      Air inlet kit with rivets (REPINTKIT)

      ``Picture coming soon``

      Galvanized Beam wall bracket (MSUPP14Z)

      ``Picture coming soon``

      Top cover gasket (GASLIN716)

      gaslin716

      Muffler complet kit (TENSMUF7)

      tensmuf7_67



      Click here to return to the table of content

      Warranty

      Parts warranty: 5 years

      Labor warranty: 1 year
