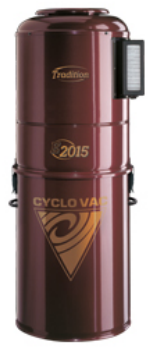

E2015 (ACYE2015A)

E2015 ACYE2015A

Table of content

Click to see Technical File

Click to see exploded view

Click to see Motor & Electric component

Click to see Bags & Filters

Click for Warranty

---

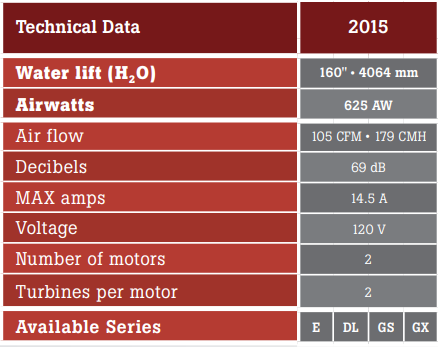

Technical File

---

Exploding View



---

Motor & Electric component

Assembled top motor Electromotor 6600-12T(FMCY2001T4)

Technical sheet for Electromotor 6600-12T(FMCY2001T4)

Top motor gasket (GASCUT28R)

Assembled bottom motor Electromotor 6600-12 (FMCY200101)

Technical sheet for Electromotor 6600-12 (FMCY200101)

Bottom motor gasket (GASCUT20R)

Gasket installed on top of the bottom motor (Gascut29)

Carbon brush (TMCARB12)



circuit board 15amp 120v (ELECIR901V)

Circuit board connection diagram (ELECIR901V)

Power cord 120v (ELECOR01)

---

Bags & Filters

Filter kit - anticlogging and cyclofilter (TDFICY21)

Anticlogging filter kit (TDFICY11)



Carbon filters (TDFILHEC2)



---

Warranty

Part warranty : 10 years

Labor warranty : 5 years
