GS125 600AW (ACYGS125A) 2016 to 2020

GS125 600AW ACYGS125A 2016 to 2020

Table of content

Click to see Technical File

Click to see Motor & Electric component

Click to see Bags & Filters

Click for Warranty

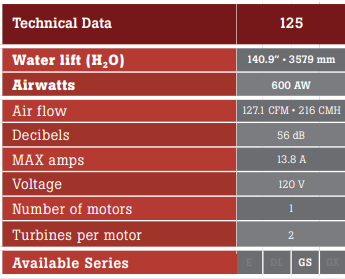

Technical File

Exploding View

Motor & Electric component

Ametek 122288 thru-flow 120v assembled motor (FM22880001)

Technical sheet of the Ametek 122288 motor (FM22880001)

Carbon brush (TMCARB15)

Motor gasket (GASCUT20R)

Circuit board 15amp 120v (ELECIR901V)

Circuit board connection diagram (ELECIR901V)

Power cord 120v (ELECOR01)

Bags & Filters

Electrostatic filter bags (TDSAC03C)

Hepa Tambourine filter (TDFITE74V)

Warranty

Part warranty : 10 years

Labor warranty : 5 years
