Active Line Up Unit
      Back to home
      1. Help Center
      2. Cyclovac - North America
      3. Active Line Up Unit

      H725 11.9 inches body

      H725 ACYH725PA

      acyh725pa_h725_pa

      Table of content

      Click to see Technical File

      Click to see Motor & Electric component

      Click to see Bags & Filters

      Click for Warranty

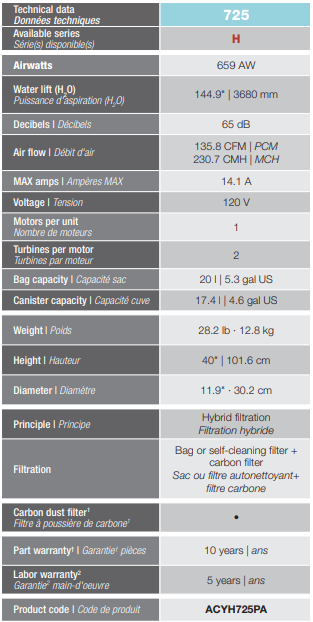

      Technical File

      Exploding View

      Motor & Electric component

      Assembled motor Ametek 1222483 Bypass 120v (FM24832701)

      fm24832701_1

      Technical sheet of the Ametek 122483 motor (FM24832701)

      fichetechnique122483

      Carbon brush (TMCARB27)

      tmcarb27

      Motor gasket (GASCUT06)

      gascut06

      circuit board 15amp 120v (ELECIR901V)

      elecir901v_87

      Circuit board connection diagram (ELECIR901V)

      Capture d’écran 2023-10-23 133223

      Power cord 120v (ELECOR01)

      elecor01_89

      Bags & Filters

      Heavy duty electrostatic bags (TDSAC93C)

      tdsac93c_42-1

      Heavy duty electrostatic bags with carbon filter(TDSAC83C) (TDSAC84C)

      tdsac83c_38tdsac84c_39

      Carbon filters (TDFILHEC2)

      tdfilhec2

      Self-cleaning filter HEPA (TDFILT65V)

      tdfilt65v_6

      Warranty

      Part warranty : 10 years

      Labor warranty : 5 years
