      HD800 (ACYHD800A) (ACYHD800BA)

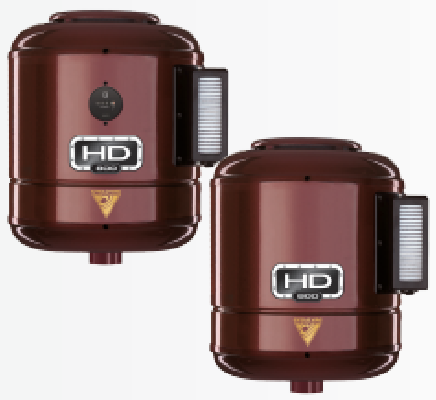

      HD800 ACYHD800A ACYHD800BA main secondary

      Table of content

      Click to see Technical File

      Click to see Motor & Electric component

      Click for Warranty

      Technical File

      Exploding View



      Motor & Electric component

      Assembled motor Ametek 117548-12 120v (FM75491201)

      fm75491201

      Technical sheet of the Ametek 117549-12 motor (FM75491201)

      Carbon brush (TMCARB08)

      tmcarb01_94

      Motor gasket (GASCUT06R)

      gascut06r

      Circuit board 15 amp 120v (ELECIR901V)

      elecir901v_87

      Circuit board connection diagram (ELECIR901V)

      Capture d’écran 2023-10-23 133223

      Power cord 120v (ELECOR01)

      elecor01_89



      Warranty

      Part warranty : 950 hrs

      Labor warranty : 1 year
