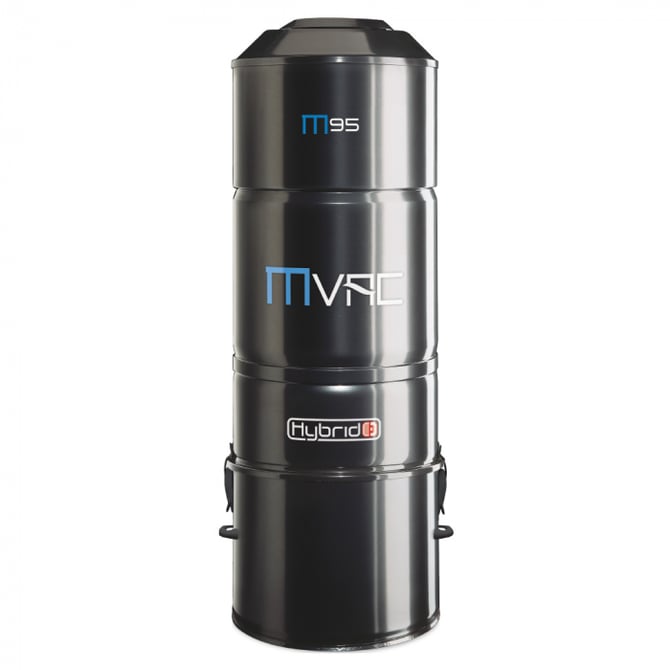

      M95

      AMVAC95A

      amvac95a_1-1

      Table of content

      Click to see Technical File

      Click to see Motor & Electric component

      Click to see Bags & Filters

      Click for Warranty

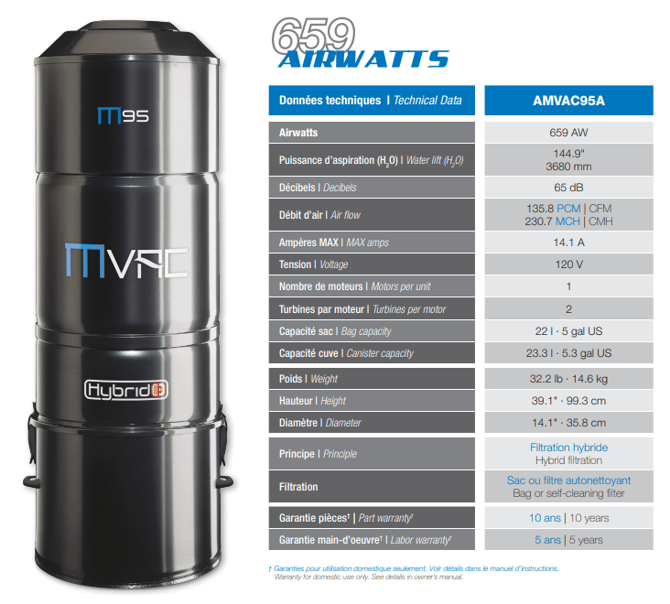

      Technical File

      specm95-1

      Exploding View

      Click here to see exploding view

      Motor & Electric Component

      Assembled motor Ametek 1222483 Bypass 120v (FM24832702)

      fm24832702

      Technical sheet of the Ametek 122483 motor (FM24832702)

      fichetechnique122483

      Carbon brush (TMCARB27)

      tmcarb27

      Motor gasket (GASCUT06)

      gascut06

      circuit board 15amp 120v (ELECIR901V)

      elecir901v_87

      Circuit board connection diagram (ELECIR901V)

      Capture d’écran 2023-10-23 133223

      Power cord 120v (ELECOR01)

      elecor01_89

      Bags & Filters

      Heavy duty electrostatic bags (TDSAC93M)

      tdsac03m

      Self-cleaning filter HEPA (TDFILT65V)

      tdfilt65v_6

      Warranty

      Part Warranty : 10 years

      Labor Warranty : 5 years
